1. Introduction

This document is designed to familiarise developers, architects and video makers with the IPTC Video Metadata Hub, a mapping of key fields between commonly-used video formats. It provides a short guideline on the use and meaning of each "field" or "property" in the IPTC Video Metadata Hub.

1.1. What IPTC Video Metadata Hub is For

IPTC’s Video Metadata Hub is a universal metadata schema for video developed with the key goal of storing and exchanging metadata in a safe and reliable way.

It is not a new video metadata standard, in the sense that it does not define any new fields that are not already defined in other formats.

Instead, it defines a common set of video metadata fields, giving precise semantics — so we will know exactly what we mean by "Contributor" or "Creator" — and shows how each of those common fields can be used in existing video standards such as EBUCore, PBCore, IPTC Photo Metadata Standard, Apple Quicktime, MPEG7, Panasonic P2 and Sony XDCAM.

These properties can be used for describing the visible and audible content, rights and licensing information, administrative details and technical characteristics of a video in a system-independent way.

It’s like Dublin Core, but for video metadata.

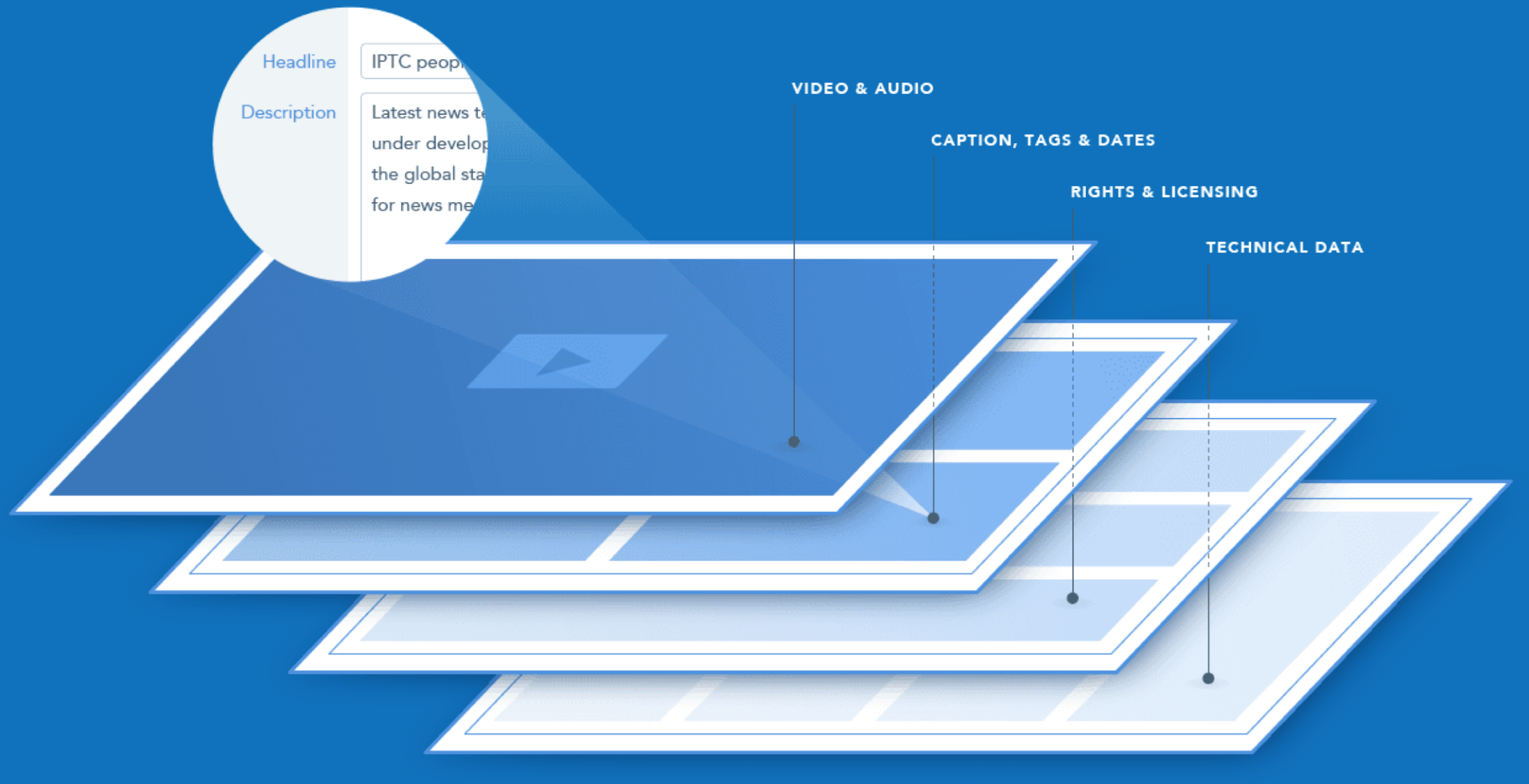

Overview of IPTC Video Metadata Hub

1.2. What problem are we solving?

Metadata is stored in different ways in existing video formats. For video editors it is very difficult to move video metadata between systems and the semantics are not always clear.

For example, location information can be described as:

  • location with role=0 in QuickTime

  • Creation/location in MPEG7

  • located in NewsML-G2

  • locationCreated in schema.org

  • Shoot/Location in SMPTE P2

IPTC Video Metadata Hub describes two fields, Location Shot and Location Shown, with very clearly defined semantics, and the fields are mapped to fields of existing video formats, so metadata can be moved between systems from different vendors.

1.3. Using Video Metadata Hub with your video content

The way in which Video Metadata Hub fields are associated with your video content will vary depending on the workflows and technical video structures used in your organisation.

Typically users will choose one of three mechanisms for expressing Video Metadata Hub properties for their content:

Sidecar files

Some organisations will choose to associate metadata in so-called "sidecar files", in a format such as NewsML-G2 or an XML component in an IMF package.

Embedded metadata

Other organisations will embed metadata into the video file, using a structure such as an XMP metadata packet in a UUID box in an ISO Base Media File Format (ISOBMFF) or Quicktime file.

External database

A third option is to simply use Video Metadata Hub properties in a database schema describing metadata in a Digital Asset Management system.

2. About the IPTC Video Metadata User Guide

2.1. IPTC Video Metadata Hub version used by this User Guide

This document is based on the IPTC Video Metadata Hub version 1.3 which was approved in May 2020. The specification for Video Metadata Hub is separated into two parts: IPTC Video Metadata Hub properties and IPTC Video Metadata Hub mappings showing how to apply these core properties in many existing video standards.

Examples, information and the specification document can be obtained from https://iptc.org/std/videometadatahub/

Copyright © 2021 IPTC, International Press Telecommunications Council. Rights Reserved.

The IPTC Video Metadata User Guide document is published under the Creative Commons Attribution 4.0 license - see the full license agreement at http://creativecommons.org/licenses/by/4.0/.

By obtaining, using and/or copying this document, you (the licensee) agree that you have read, understood, and will comply with the terms and conditions of the license.

Materials used in this guide are either in the public domain or are available with the permission of their respective copyright holders. All materials of this IPTC standard covered by copyright shall be licensable at no charge.

2.3. Acknowledgements

This document is the result of a team effort by members of the Video Metadata Working Group of the International Press Telecommunications Council (IPTC), with input and assistance from other contributors.

The User Guide up to this version was edited by (in alphabetical order):

Linda Burman (Individual IPTC member), Derek Coller (Getty Images), Pam Fisher (Individual Member and lead of the IPTC Video Metadata Working Group), Mark Milstein (Microstocksolutions) Brendan Quinn (IPTC), David Riecks (www.controlledvocabulary.com/PLUS), Michael Steidl (Honorary IPTC member), Alison Sullivan (Individual Member).

2.4. How to contact IPTC

Join the public IPTC Video Metadata group: https://groups.io/g/iptc-videometadata/

Submit a message on our website: https://iptc.org/about-iptc/contact-us/

Follow IPTC on Twitter: @IPTC

2.5. About IPTC

The IPTC, based in London, brings together the world’s leading news agencies, publishers and industry vendors. It develops and promotes efficient technical standards to improve the management and exchange of information between content providers, intermediaries and consumers. The standards enable easy, cost-effective and rapid innovation and include the Photo Metadata standard, the Video Metadata Hub, the news exchange formats NewsML-G2, ninjs, SportsML-G2 and NITF, rNews for marking up online news, the rights expression language RightsML, and NewsCodes taxonomies for categorising news.

IPTC is a not-for-profit membership organisation registered in England - find more about membership.

Business address:

IPTC International Press Telecommunications Council
25 Southampton Buildings
London WC2A 1AL
United Kingdom

3. Properties and Mappings for video metadata

The Video Metadata Hub’s set of metadata properties includes:

  • 23 properties describing what can be seen and heard in the video

  • 14 properties providing rights-related information

  • 22 properties for administrative purposes

  • 26 properties covering technical characteristics

  • 15 property structures which are used for the properties listed above.

Each property is defined by:

  • its name

  • a definition of its semantics

  • a basic data type

  • a definition how often it may occur in the metadata about a piece of video (its "cardinality")

The properties are defined in detail in the Property Reference Table below.

Each property can be used to describe a clip within a video or the video as a whole.

Below the property table we describe how these properties can be mapped to many existing video structures using our mapping table.

4. Property Reference Table

This section provides a reference of property labels and names in alphabetical order for quick location of specific fields and their guidelines.

Each property has a data type such as Text or Date. Where the property requires a more complex structure such as Location Structure, it is hyperlinked to the below section which defines the properties that make up each property structure.

4.1. Administrative fields

Property name Definition Type and cardinality Change history

Circa Date Created

Approximate date or range of dates associated with the creation and production of a video.

Primarily for archival use if exact dates are not available.

Text (0..1)

New 1.0

Date Created

Date and optionally time when the video was created

If exact dates are not available use Circa Date Created.

Date (0..1)

New 1.0

Date Modified

Date and optionally time when the video was modified last time

Date (0..1)

New 1.0

Date Released

Date and optionally time of the public release of the video

Date (0..1) (Year only, Year-Month only, Year-Month-Day optional with time)

Changed 1.3

Episode

Episode in a specific season of a TV or video series this video is a member of.

Episode/Season Structure (0..1)

New 1.0

External Metadata URL

Link(s) to an external web resource for retrieval of further metadata about this video

URL (0..unbounded)

New 1.0

Feed Identifier

Identifier of the feed/source this video was delivered by

Text (0..1)

New 1.0

Metadata Edit Date

Date of the last edit of the metadata of this video.

Date(0..1)

New 1.3

Metadata Editor

Party doing the last edit of the metadata of this video.

Entity Structure (0..1)

New 1.3

Metadata Authority

Party responsible for the accuracy of the metadata values.

Entity Structure (0..1)

New 1.3

Planning Reference

Reference to a data item used for planning the shooting of this video

Entity with role Structure (0..unbounded)

New 1.2

Publication Event

Date and optionally the time of publishing this video with name and identifier for the event of this publication.

Publication Event Structure (0..unbounded)

New 1.0

Rating

How the video is rated by a public source or an authority

Rating Structure (0..unbounded)

New 1.0

Ready for Release

An indicator if this video is ready for being released to the public. This depends on rules by the party responsible for the publication.

Boolean (0..1)

New 1.0

Recording Device

Device used for recording this video

Device Structure (0..1)

New 1.2

Registry Entry

Identifier of the video issued by an identified registry.

What is considered a registry can be interpreted in a wide sense as the controlled management of assets with asset-specific identifiers

Registry Entry Structure (0..unbounded)

New 1.0

Season

Season of a TV or video series this video is a member of.

Episode/Season Structure (0..1)

New 1.0

Series

TV or video series this video is a member of.

Series Structure (0..1)

New 1.0

Storyline Identifier

Identifier(s) of a story evolving over time with which this video is associated

Text (0..unbounded)

New 1.0

Style Period

The style, historical or artistic period, movement, group, or school whose characteristics are represented by the video

The Style Period may be different from the Temporal Coverage

Text (0..1)

New 1.0

Temporal Coverage

Period of time covered by the video

The period of Temporal Coverage may be different from the Style Period.

Temporal Coverage Structure (0..1)

New 1.0

Parent Video Identifier

Globally unambiguous identifier of the video from which this video was derived.

This video could be a variant in the technical video format, a variant in edit, a variant in language of the referenced video.

Text/URI (0..1)

New 1.3

Video Identifier

Globally unambiguous identifier of the video regardless of renditions, formats, encodings etc. This identifier should be shared across all renditions.

IPTC advises to follow the guidelines by either EIDR or ISAN (http://www.eidr.org or http://www.isan.org)

Text (0..1)

New 1.0

Video Rendition

Unambiguous identifier of the video specific to a rendition.

Definitions of specific renditions are not provided by IPTC. Definitions of renditions may be based on format or encoding etc and can be set by producers of videos and/or system vendors.

Text (0..1)

New 1.0

Video Version

Version of the video identified by the Video Identifier

Text (0..1)

New 1.0

Workflow Tag

Indicator for the role of this video in a production workflow.

Could be used to indicate footage, edited video, program masters, etc. Values are typically codes defined by a production company.

Concept Structure (0..1)

New 1.0

4.2. Fields describing audio/visual content

Property name Definition Type and cardinality Change history

CV Term About the Content

What the video is about expressed by term(s) selected from taxonomies or controlled vocabularies

Concept Structure (0..unbounded)

New 1.0

Data Displayed on Screen

Text or other data shown in some region of the image.

Text with Region Delimiter Structure (0..unbounded)

New 1.0

Description

Textual description of the content of the video

Text + language tag (0..1)

New 1.0

Dopesheet

Shotlist with descriptions

Text + language tag (0..1)

New 1.0

Dopesheet Link

Link(s) to an external web resource providing a shotlist with descriptions

Qualified Link Structure (0..unbounded)

New 1.0

Featured Organisation

Organisation(s) featured by the content of the video

Entity Structure (0..unbounded)

New 1.0

Genre

Artistic, style, journalistic, product or other genre(s) of the video.

CV-Term Structure (0..unbounded)

New 1.0

Headline

Short description of the content of the video

Text + language tag (0..1)

New 1.0

Keyword

What the video is about expressed by a free choice of descriptive phrases or keywords

Text (0..unbounded) optional language tag

New 1.0

Language Version

Language version of the video

Language tag (0..1)

New 1.0

Location Shot

Place from where the video was shot, in particular where the camera was located

May be used multiple times for edited videos with clips shot at different locations.

Location Structure (0..unbounded)

New 1.0

Location Shown

Place(s) shown by the video

Location Structure (0..unbounded)

New 1.0

Object Shown

Object(s) shown by the video

Entity Structure (0..unbounded)

New 1.0

Person Heard

Person(s) who can be heard only in the video

Entity Structure (0..unbounded)

New 1.0

Person Shown

Person(s) shown by the video

Entity Structure or Person Details Structure (0..unbounded)

New 1.0

Product Shown

Product(s) identified by a GTIN code shown by the video

Product with GTIN Structure (0..unbounded)

New 1.0

Shot Type

Visual type(s) of the video

Concept Structure (0..unbounded)

New 1.0

Shown Event

Event(s) shown by the video

Entity Structure (0..unbounded)

New 1.0

Snapshot Link

A still image representing the video.

Linked Image Structure (0..unbounded)

New 1.1

Title

Title of the video, should be a shorthand reference

Text (0..1)

New 1.0

Transcript

Transcription of the video

Text (0..1)

New 1.0

Transcript Link

Link(s) to an external web resource providing a transcription of the video

Qualified Link Structure (0..unbounded)

New 1.0

Visual Colour

The visual colouring of the video.

Technical details of the colours are covered by …

Text (0..1) Enumeration: - black and white/monochrome - colour

New 1.0

4.3. Rights fields

Property name Definition Type and cardinality Change history

Contributor

Party or parties (person or organisation) which contributed to the video, refinement by the role attribute.

A distinction between contributor and creator should follow rights laws, contracts or common business rules. Vocabulary of roles of persons contributiong to a video should be based on the use by a video or movie producer assocation.

Entity with role Structure (0..unbounded)

New 1.0

Copyright Notice

Any textual notice necessary by legal needs or common use to indicate the current owner of the copyright of this media resource

Text + language tag (0..1)

New 1.0

Copyright Year

Year appearing in the copyright notice as numeric value

Number/integer (0..1)

New 1.0

Creator

Party or parties (person or organisation) which created the video, refinement by the role attribute.

A distinction between creator and contributor should follow rights laws, contracts or common business rules. Vocabulary of roles of persons creating a video should be based on the use by a video or movie producer assocation.

Entity with role Structure (0..unbounded)

New 1.0

Credit Line

Credit to person(s) and/or organisation(s) required by the supplier of the video (clip) to be used when published.

Text (0..1)

New 1.0

Licensor

Company or person to be contacted for licensing

Entity Structure (0..1)

New 1.0

Model Release Document

Identifier(s) of a Model Release document.

Text (0..unbounded)

New 1.0

Model Release Status

Summarises the availability and scope of model releases authorizing usage of the likenesses of persons appearing in the video

PLUS CV Term/URI

New 1.0

Property Release Document

Identifier(s) of a Property Release document.

Text (0..unbounded)

New 1.0

Property Release Status

Summarises the availability and scope of property releases authorising usage of the properties appearing in the photograph.

PLUS CV Term/URI

New 1.0

Rights and Licensing Terms (1)

Structure covering the assertion of rights, the granting of licenses and both in human and a machine readable ways (including restrictions, embargoes, duties …​)

Embedded rights expression can cover only machine readable expression.

Embedded Rights Expression Structure (0..unbounded)

New 1.0

Rights and Licensing Terms (2)

Structure covering the assertion of rights, the granting of licenses and both in human and a machine readable ways (including restrictions, embargoes, duties …​)

Embedded rights expression can cover only machine readable expression.

Linked Rights Expression Structure (0..unbounded)

New 1.0

Rights Owner

Data identifying the individual or organisation owning the rights for this media resource which could be the video as a whole or a clip in a video. The optional role attribute may indicate which facet of rights is covered by this entity.

Entity with role (0..unbounded)

New 1.0

Supplier

Supplier of this copy of the media resource

Entity Structure (0..1)

New 1.0

Supply Chain Source

Person or party who has a role in the content supply chain.

Entity Structure (0..unbounded)

New 1.0

4.4. Technical fields

Property name Definition Type and cardinality Change history

Audio Bitrate

Bit rate of the audio data depending on the Video Bit Rate Type: if fixed the fixed rate, if variable the maximum rate. The unit is bits per second.

Number (0..1)

New 1.0

Audio Bitrate Type

Indicates if the bitrate of the audio data is fixed or variable

Text (0..1) Enumeration - fixed - variable

New 1.0

Audio Bits per Sample

Number of bits used for an audio sample

Number (0..1)

New 1.2

Audio Channel Layout

Term indicating the channel layout

Text (0..1)

New 1.0

Audio Channels

Number of used audio channels

Number (0..1)

New 1.0

Audio Coding

Machine readable code and a human readable term for the used audio coding

Entity Structure (0..1)

New 1.0

Audio Sample Rate

Rate used for sampling the audio

Number (0..1)

New 1.0

Display Aspect Ratio

Ratio of width and height of the displayed image. (Width and height do not require to be in pixels.)

e.g. 2.39:1

Text (0..1)

New 1.0

Editorial Duration

Duration of the video content proposed for editorial use

Multiple occurrences should be used for the same value in different time formats

Video Time Structure (0..unbounded)

New 1.0

Editorial Duration End

The point in time and frames the content proposed for editorial use ends

Multiple occurrences should be used for the same value in different time formats

Video Time Structure (0..unbounded)

New 1.0

Editorial Duration Start

The point in time and frames the content proposed for editorial use starts

Multiple occurrences should be used for the same value in different time formats

Video Time Structure (0..unbounded)

New 1.0

File Bitrate

The total bit rate of the all media streams in this file.

Number (0..1)

New 1.0

File Duration

Duration of the overall video (from the first to the last frame)

Multiple occurrences should be used for the same value in different time formats

Video Time Structure (0..1)

New 1.0

File Format

Format of the file containing the video data.

Entity Structure (0..1)

New 1.0

Frame Size

Size of the video frame in pixels

Frame Size Structure (0..1)

New 1.0

Media Type

IANA Media Type of the video.

e.g. "video/quicktime"

Text (0..1)

New 1.0

Orientation

Orientation of the visual content of the video as defined by TIFF.

Number (0..1) (TIFF 6.0 orientation - with a user guideline ("no flips"))

New 1.0

Signal Aspect Ratio

Ratio of width and height in pixels of a frame

e.g. 16:9

Text (0..1)

New 1.0

Signal Format

Combined term including the size of the frame, interlaced/progressive, framerate

e.g. "1080p"

Text (0..1)

New 1.0

Stream-ready

Indicates if this video can be used for streaming by the rule of having the key technical data of the video at the start rather than end of the file and that the wrapper and essense format are suitable for streaming

Text (0..1) Enumeration: - true - false - unknown

New 1.0

Video Bitrate

Bit rate of the video data depending on the Video Bit Rate Type: if fixed the fixed rate, if variable the maximum rate. The unit is bits per second.

Number (0..1)

New 1.0

Video Bitrate Type

Indicates if the bitrate of the video data is fixed or variable

Text (0..1) Enumeration - fixed - variable

New 1.0

Video Coding

Machine readable code and a human readable term for the used video coding

Entity Structure (0..1)

New 1.0

Video Frame Rate

Used frame rate

Number (0..1)

New 1.0

Video Profile

Name of the used video profile as defined by the maker of the encoding standard.

e.g. "High 4:2:2"

Text (0..1)

New 1.0

Video Streams Count

Count of video streams in a video file.

Number (0..1)

New 1.0

4.5. Time marker

Property name Definition Type and cardinality Change history

Markers

A marker describes a location in an audio or video sequence. It is used to identify for which part of the video (a clip of the video as a whole) a set of IPTC Video Metadata properties is used.

XMP specific type

New 1.0

5. Property Structures

Intro text to structures section.

5.1. CV-Term Structure

Used in: Genre

Property name Definition Type and cardinality Change history

CV-Term CV ID

Globally unique identifier of the Controlled Vocabulary the term is from.

Text/URI (0..1)

New 1.0

CV-Term ID

Globally unique identifier of the term from a Controlled Vocabulary.

Text/URI (1)

New 1.0

CV-Term name

Natural language name of the term from a Controlled Vocabulary.

Text + language tag (0..1)

New 1.0

Refined 'aboutness' of the CV-Term

Refinement of the 'about' relationship of the term with the content.

E.g. an identifier for "shown emotion" could be used to indicate that the CV-Term covers this facet.

Text/URI (0..1)

New 1.0

5.2. Device Structure

Used in: Recording Device

Property name Definition Type and cardinality Change history

Manufacturer

Name of the manufacturer of the device

Text (0..1)

New 1.2

Model Name

Name of the device model

Text (0..1)

New 1.2

Serial Number

Serial number, assigned by manufacturer

Text (0..1)

New 1.2

Attached Lens Description

Short description of the lens used with the device at the time of the recording

Text (0..1)

New 1.2

Owner´s Device ID

Identifier assigned by the owner of the device

Text (0..1)

New 1.2

5.3. Embedded Rights Expression Structure

Property name Definition Type and cardinality Change history

Rights Expression Language ID

Identifier of the rights expression language used by the rights expression.

Text/URI (1)

New 1.0

Encoding type

Encoding type of the rights expression, identified by an IANA Media Type.

Text (1)

New 1.0

Encoded Rights Expression

Embedded serialized rights expression using a rights expression language which is encoded as a string.

Text (1)

New 1.0

5.4. Entity Structure

Property name Definition Type and cardinality Change history

Identifier

Globally unique identifier of the entity

Text/URI (0..unbounded)

New 1.0

Name

Full name of the entity

Text + language tag (0..1)

New 1.0

5.5. Concept Structure

Property name Definition Type and cardinality Change history

Identifier

Globally unique identifier of the concept

Text/URI (0..unbounded)

New 1.0

Name

Full name of the concept

Text + language tag (0..1)

New 1.0

5.6. Entity with role Structure

Property name Definition Type and cardinality Change history

Identifier

Globally unique identifier of the entity

Text/URI (0..unbounded)

New 1.0

Name

Full name of the entity

Text + language tag (0..1)

New 1.0

Role

Identifier of the role the entity has in the context of the metadata property

URI (0..unbounded)

New 1.0

5.7. Concept with role Structure

Property name Definition Type and cardinality Change history

Identifier

Globally unique identifier of the concept

Text/URI (0..unbounded)

New 1.0

Name

Full name of the concept

Text + language tag (0..1)

New 1.0

Role

Identifier of the role the concept has in the context of the metadata property

URI (0..unbounded)

New 1.0

5.8. Episode/Season Structure

Used in: Episode, Season

Property name Definition Type and cardinality Change history

Name

Name of the episode or season of a series

Text + language tag (0..1)

New 1.0

Number

Number of the episode or season of a series

Integer (0..1)

New 1.0

Identifier

Identifier of the episode or season of a series

URI (0..1)

New 1.0

5.9. Frame Size Structure

Used in: Frame Size

Property name Definition Type and cardinality Change history

Width

Width of the video frame in pixels

Number (1)

New 1.0

Height

Height of the video frame in pixels

Number (1)

New 1.0

Measure Unit

Units of width and height values, fixed value "pixels"

Text(1)

New 1.0

5.10. Linked Rights Expression Structure

Property name Definition Type and cardinality Change history

Rights Expression Language ID

Identifier of the rights expression language used by the rights expression.

Text/URI (1)

New 1.0

Encoding type

Encoding type of the rights expression, identified by an IANA Media Type.

Text (0..1)

New 1.0

Link to Encoded Rights Expression

Link to a rights expression using a rights expression language.

URL (1)

New 1.0

5.11. Linked Image Structure

Used in: Snapshot Link

Property name Definition Type and cardinality Change history

Image Link

Link URL locating the image resource

URL (1)

New 1.1

Image Qualifier

Qualifier of the relationship of the image with the video

URI (0..unbounded)

New 1.1

Image Role

Role of this image in the context of the video

Text (0..1)

New 1.1

Media Type

IANA Media (MIME) Type

Text (0..1)

New 1.1

Image Width

Width of the image, in pixels

Integer (0..1)

New 1.1

Image Height

Height of the image, in pixels

Integer (0..1)

New 1.1

Used Video Frame

Frame of the video used for this still image.

Video Time structure (0..1)

New 1.1

5.12. Location Structure

Property name Definition Type and cardinality Change history

Identifier

Globally unique identifier of the location

Text/URI (0..unbounded)

New 1.0

Name

Full name of the location

Text + language tag (0..1)

New 1.0

Sublocation name

Name of a sub location the Location is located in

Text + language tag (0..1)

New 1.0

City name

Name of the city the Location is located in

Text + language tag (0..1)

New 1.0

State/Province name

Name of the state or province the Location is located in

Text + language tag (0..1)

New 1.0

Country name

Name of the country the Location is located in

Text + language tag (0..1)

New 1.0

Country ISO code

ISO code of the country the Location is located in

Text + language tag (0..1)

New 1.0

World region name

Name of the world region the Location is located in

Text + language tag (0..1)

New 1.0

GPS-Longitude

Longitude of a WGS84 based position of this Location

Number/decimal (0..1)

New 1.0

GPS-Latitude

Latitude of a WGS84 based position of this Location

Number/decimal (0..1)

New 1.0

GPS-Altitude

Altitude in meters of a WGS84 based position of this Location

Number/decimal (0..1)

New 1.0

5.13. Person Details Structure

Property name Definition Type and cardinality Change history

Identifier

Globally unique identifier of the person

Text/URI (0..unbounded)

New 1.0

Name

Name of the person

Text + language tag (0..1)

New 1.0

Description

A textual description of the person

Text + language tag (0..1)

New 1.0

Characteristics

A property or trait of the person

Concept structure (0..unbounded)

New 1.0

5.14. Product with GTIN Structure

Used in: Product Shown

Property name Definition Type and cardinality Change history

GTIN

A 14 digit GTIN (Global Trade Item Number) of the product (GTIN-8 to GTIN-14 codes are used).

Text (1)

New 1.0

Name

Name of the product.

Text + language tag (0..1)

New 1.0

Description

A textual description of the product.

Text + language tag (0..1)

New 1.0

5.15. Publication Event Structure

Property name Definition Type and cardinality Change history

Publication Date

Date and optionally the time of publishing the video

Date (1)

New 1.0

Publication Event Name

Name of the event for publishing this video.

The name may include the broadcasting company, the country, if this is a (regional) first publication etc

Text + language tag (0..1)

New 1.0

Publication Event Identifier

Identifier of the event for publishing this video

URI (0..1)

New 1.0

Property name Definition Type and cardinality Change history

Link

URL of the link

URL (1)

New 1.0

Qualifier

Term qualifying the use of the link

URI (0..1)

New 1.0

5.17. Rating Structure

Used in: Rating

Property name Definition Type and cardinality Change history

Rating Value

Rating value as issued by the rating source

Text (1)

New 1.0

Rating Source Link

Link to the site and optionally the page of the party which has issued the rating value, linked resource should explain the rating rules.

URL (1)

New 1.0

Rating Scale Min Value

The value of the rating scale used for the lowest/worst rating

Text (0..1)

New 1.0

Rating Scale Max Value

The value of the rating scale used for the highest/best rating

Text (0..1)

New 1.0

Rating Value Logo

Visualisation of the rating value referenced by a link

URL (0..1)

New 1.0

Rating Region

Geopolitical region to which this rating applies.

Location Entity structure (0..unbounded)

New 1.0

5.18. Registry Entry Structure

Used in: Registry Entry

Property name Definition Type and cardinality Change history

Asset Identifier

Unique identifier of the video as issued by a registry

This value shall not be changed after being applied.

Text (preferred: URI) (1)

New 1.0

Registry Identifier

An identifier for the registry which issued the identifier of the video.

Text (preferred: URI) (1)

New 1.0

Role

An identifier of the reason and/or purpose for this Registry Entry.

Could indicated e.g. "Id of the previous supplier", "Id of the original copyright owner", "Id used by the archive", etc

Text/URI (0..1)

New 1.0

5.19. Series Structure

Used in: Series

Property name Definition Type and cardinality Change history

Series name

Name of the series

Text + language tag (0..1)

New 1.0

Series identifier

Identifier for the series

URI (0..1)

New 1.0

5.20. Temporal Coverage Structure

Property name Definition Type and cardinality Change history

From Date

Optionally truncated date when the temporal coverage starts

Truncated date means: the date value can be year + month + day OR year + month OR year only

Date(1)

New 1.0

To Date

Optionally truncated date when the temporal coverage ends

Date(1)

New 1.0

5.21. Text with Region Delimiter Structure

Property name Definition Type and cardinality Change history

Text

Text or textual data

Text (1)

New 1.0

Measure Type

How the measures of the rectangle are expressed

Absolute pixels: measured from the upper left corner of the frame Ratio: percentage of the width or height, reference point upper left corner of the frame

Text (0..1) - enumeration - absolutePixels - ratio

New 1.0

Rectangle, upper left X

Horizontal axis value of the upper left corner of the rectange

Decimal (0..1)

New 1.0

Rectangle, upper left Y

Vertical axis value of the upper left corner of the rectange

Decimal (0..1)

New 1.0

Rectangle, horizontal size

Horizontal width of the rectangle

Decimal (0..1)

New 1.0

Rectangle, vertical size

Vertical height of the rectangle

Decimal (0..1)

New 1.0

5.22. Video Time Structure

Property name Definition Type and cardinality Change history

Time Format

Identifier of the time format. For time code formats following SMPTE specifications.

Text value from CV (1) Enumeration: - normalPlayTime - smpteTC24 - smpteTC25 - smpteTC2997 - smpteTC2997drop - smpteTC30 - smpteTC50 - smpteTC5994 - smpteTC5994drop - smpteTC60 - smpteTC23976

New 1.0

Time Value

Formated string including hours, minutes, seconds, fractions of seconds or frames, depending on the Time Format

Text (1)

New 1.0

Identifier

Globally unique identifier of the entity

Text (0..1)

New 1.3

Name

Full name of the entity

Text (0..1)

New 1.3

Circa Date Created

Approximate date or range of dates associated with the creation and production of an artwork or object or its components.

Text (0..1)

New 1.3

Content Description

A textual description of the content depicted in the artwork or object.

NOTE:

Text (0..1)

New 1.3

Contribution Description

A textual description about a contribution made to an artwork or an object.

Should include the type, date and location of contribution, and details about the contributor.

Text (0..1)

New 1.3

Copyright Notice

Contains any necessary copyright notice for claiming the intellectual property for artwork or an object in the image and should identify the current owner of the copyright of this work with associated intellectual property rights.

Text (0..1)

New 1.3

Creator

Contains the name of the artist who has created artwork or an object in the image. In cases where the artist could or should not be identified the name of a company or organisation may be appropriate.

Text (0..unbounded)

New 1.3

Creator ID

Globally unique identifier for the creator of artwork or object.

Add the IDs in the same sequence as the Creator names

URL (0..unbounded)

New 1.3

Current Copyright Owner ID

Globally unique identifier for the current owner of the copyright of the artwork or object.

URI (0..1)

New 1.3

Current Copyright Owner Name

Name of the current owner of the copyright of the artwork or object.

Text (0..1)

New 1.3

Current Licensor ID

Globally unique identifier for the current licensor of the artwork or object.

URI (0..1)

New 1.3

Current Licensor Name

Name of the current licensor of the artwork or object.

Text (0..1)

New 1.3

Date Created

Designates the date and optionally the time the artwork or object in the image was created. This relates to artwork or objects with associated intellectual property rights.

DateTime (preferred: truncated DateTime) (0..1)

New 1.3

Physical Description

A textual description of the physical characteristics of the artwork or object, without reference to the content depicted.

Object type, materials-techniques and measurements may be described.

Text (0..1)

New 1.3

Source

The organisation or body holding and registering the artwork or object in the image for inventory purposes.

Text (0..1)

New 1.3

Source Inventory Number

The inventory number issued by the organisation or body holding and registering the artwork or object in the image.

Text (0..1)

New 1.3

Source Inventory URL

URL reference to the metadata record of the inventory maintained by the Source.

URL (0..1)

New 1.3

Style Period

The style, historical or artistic period, movement, group, or school whose characteristics are represented in the artwork or object.

It is advised to take the terms from a Controlled Vocabulary.

Text (0..unbounded)

New 1.3

Title

A reference for the artwork or object in the image.

Text (0..1)

New 1.3

Many Video Metadata Hub properties are mapped to properties defined by one or more of the below standards, to make implementation easier for vendors:

  • Apple QuickTime

  • Canon VideoClip XML (as of Video Metadata Hub 1.2)

  • EBUCore (updated in Video Metadata Hub 1.3)

  • IPTC NewsML-G2

  • MPEG 7 (ISO 15938-5)

  • PBCore

  • Schema.org

  • SMPTE P2 as used by Panasonic*

  • Sony XDCAM & planning (as of Video Metadata Hub 1.2)

The mappings can be obtained from the IPTC Video Metadata Hub mappings table.

6.1. Using the mapping table

For example, if an organisation uses NewsML-G2 as its main metadata format, and wants to describe the unique identifier for the video file (Video Identifier in VM Hub).

Looking up the appropriate row in the mapping table, and then consulting the NewsML-G2 column, we can see that the recommended mapping is contentMeta/altId[@role="altidrole:vmhVideoId"].

So this means that the video identifier should be represented as follows in the NewsML-G2 file:

<contentMeta>
    <altId role="altidrole:vmhVideoId">xxxx</altId>
</contentMeta>

7. Use Cases for Video Metadata Hub

The Video Metadata Hub aims to provide a comprehensive set of properties, however specific applications may not require each of these.

A set of six initial use cases have been outlined, each typically requiring only a subset of VMH properties. These are described below, and related properties shown.

Enterprise Advertising Production

Non-broadcast corporate marketing video assets

Galleries, Libraries, Archives, Museums (GLAM)

Moving image material held by cultural institutions, for preservation, exhibition or reference

Stock Footage

Individual film/video footage clips from production or archive, made available for licensing or repurposing

Long-form Production

Finished programming ready for broadcast playout or OTT delivery. (Note that the example video for long-form production will be added to this guide in the future)

Broadcast Media Management

Broadcast asset management for repository and archive. (Note that the example video for Broadcast Media Management will be added to this guide in the future)

News Agency

Individual video news item distributed or published by a news agency

For each of these use cases, we provide an example video below, showing the Video Metadata Hub fields that would apply to that use case in particular.

7.1. Enterprise Advertising Production example

Thanks to Allison Sullivan of MGM Resorts for providing the example footage:

Thumbnail for Enterprise Advertising Production example footage

7.1.1. Administrative fields

Property name Example value

Date Created

2020-04-28

Date Modified

2021-01-21

Date Released

2020-12-10

Metadata Authority

MGM Resorts International Operations Inc.

Video Identifier

106271516

Video Version

v.2

7.1.2. Fields describing audio/visual content

Property name Example value

Keyword

Video; Fountains of Bellagio; Attractions; Entertainment & Attractions; Fountains; Drone; Drone Footage; Night; Exterior; Aerial; Architecture; Drone Footage - Night; Aerial View; Aircraft Point of View; Building - Exterior

Location Shot

Bellagio, Las Vegas

Location Shown

Bellagio, Las Vegas

Object Shown

Fountains of Bellagio

Shown Event

Aerial, exterior, night

Title

BEL106271516

Visual Colour

Color

7.1.3. Rights fields

Property name Example value

Contributor

Mark Ott

Copyright Notice

MGM Resorts International Operations Inc.

Copyright Year

2020

Creator

Mark Ott

Credit Line

Mark Ott, 808 Post

Licensor

MGM Resorts International Operations Inc.

Rights Owner

MGM Resorts International Operations Inc.

Supplier

808 Post

Supply Chain Source

Mark Ott

7.2. Galleries, Libraries, Archives, Museums example

Thumbnail for GLAM example footage

7.2.1. Administrative fields

Property name Example value

Circa Date Created

1990s

Date Modified

No

External Metadata URL

Metadata Authority

Wellcome Library

Ready for Release

Yes

Video Identifier

b16766246

7.2.2. Fields describing audio/visual content

Property name Example value

CV Term About the Content

Public health

Description

A television advertisement asking people to register for a Donor Card in order to donate organs after death.

Dopesheet Link

Genre

Public information

Headline

A television advertisement asking people to register for a Donor Card in order to donate organs after death.

Keyword

Organ procurement, Public health, Medical sciences, Organ transplantation, Health education, Health policy, Health services

Language Version

En

Snapshot Link

Title

Donor card gift (commercial).

7.2.3. Rights fields

Property name Example value

Contributor

This video was made from material preserved by the BFI National Archive.

Copyright Notice

Crown copyright, managed by BFI; CC-BY-NC

Creator

This video was made from material preserved by the BFI National Archive.

Credit Line

Wellcome Library

Rights Owner

Wellcome Library

Supplier

Wellcome Library

7.3. Stock Footage example

Thanks to Mark Milstein of Microstocksolutions for providing the example footage:

Thumbnail for Stock Footage example footage

7.3.1. Administrative fields

Property name Example value

Circa Date Created

2020-09-18

Date Created

2020-09-18

Date Released

2020-09-18

External Metadata URL

Feed Identifier

Mark Milstein

Metadata Edit Date

2020-10-21

Metadata Editor

IPTC VM Working Group

Metadata Authority

Mark Milstein

Publication Event

IPTC VM Working Group Authentication Process

Recording Device

Panasonic HC-X1 Camera

Registry Entry

VRMETA_101010

Style Period

Drone footage

Temporal Coverage

From: 2020 To: 2020

Parent Video Identifier

VRMETA_100000

7.3.2. Fields describing audio/visual content

Property name Example value

Description

An aerial view of the Budapest Container Port

Keyword

container port, Budapest, Hungary, railroad, trucking, transportation, logistics, aerial view

Location Shot

Budapest

Location Shown

Budapest

Object Shown

Container port

Shot Type

Aerial, long shot

Title

An aerial view of the Budapest Container Port

7.3.3. Rights fields

Property name Example value

Copyright Notice

Copyright VRMETA

Copyright Year

2020

Creator

Mark Millstein

Credit Line

VRMETA

Licensor

VRMETA

7.4. News Agency example

Thumbnail for News Agency example footage

7.4.1. Administrative fields

Property name Example value

Date Created

1961-05-25

Date Released

1961-05-25

Feed Identifier

NASA Video

Metadata Authority

NASA

7.4.2. Fields describing audio/visual content

Property name Example value

Description

In an address to Congress on "Urgent National Needs" on May 25, 1961, President John F. Kennedy called for America to send astronauts to the moon and return him safely to Earth before the end of the decade.

Featured Organisation

NASA, US Government

Genre

News

Headline

A President Issues NASA’s First Historic Challenge

Language Version

EN

Location Shown

Washington DC

Person Heard

President John F Kennedy

Person Shown

President John F Kennedy

7.4.3. Rights fields

Property name Example value

Contributor

NASA

Copyright Year

1961

Creator

NASA

Rights Owner

NASA; public domain

8. Example files

We have created some sample video files with embedded metadata using Video Metadata Hub properties.

The example files can be found at https://iptc.org/std/videometadatahub/examples/.

These "reference videos" have a value for each and every Video Metadata Hub property, embedded using the XMP format.

View the embedded metadata by downloading and examining the file, for example using the command-line tool exiftool:

$ curl --output refvideo.mp4 https://www.iptc.org/std/videometadatahub/examples/IPTC-VMHub-RefVideo-Rec0100.mp4
$ exiftool -G1 -json -struct refvideo.mp4

This is an extract of the embedded metadata, showing the Video Metadata Hub tags extracted by exiftool:

{
  [ ... ]
  "LinkedEncRightsExpr": [{
    "LinkedRightsExpr": "http://example.org/linkedrightsexpression/id986/Rec0100",
    "RightsExprEncType": "IANA Media Type of ERE (Rec0100)",
    "RightsExprLangId": "http://example.org/RELids/id4712/Rec0100"
  }],
  "LocationCreated": [{
    "City": "City (Location created1) (Rec0100)",
    "CountryCode": "R16",
    "CountryName": "CountryName (Location created1) (Rec0100)",
    "GPSAltitude": "180 m",
    "GPSLatitude": "16 deg 20' 1.20\" N",
    "GPSLongitude": "48 deg 14' 1.80\" E",
    "LocationId": ["Location Id (Location created1) (Rec0100)"],
    "LocationName": "Name of Location Created 1 (Rec0100)",
    "ProvinceState": "Province/State (Location created1) (Rec0100)",
    "Sublocation": "Sublocation (Location created1) (Rec0100)",
    "WorldRegion": "Worldregion (Location created1) (Rec0100)"
  }],
  "LocationShown": [{
    "City": "City (Location shown1) (Rec0100)",
    "CountryCode": "R16",
  [ ... ]

Please note that the field names used by exiftool do not exactly match the names in the Video Metadata Hub specification.

9. How can you help?

  • Software vendors: implement the standard in your systems to support interoperability. The standard is freely available and free to implement.

  • Broadcasters and video producers: encourage your software vendors and manufacturers to implement IPTC Video Metadata Hub in their systems.

  • Media managers: as you configure your Digital Asset Management systems' metadata fields, consider using the Video Metadata Hub properties as the basis for your metadata schema, to ensure easy supply chain interchange and compatibility with other systems in the future.

10. Contact us

If you would like to implement IPTC Video Metadata Hub, suggest changes or help us spread the word, please contact the IPTC Video Metadata Working Group via the public discussion list https://groups.io/g/iptc-videometadata .
