Included schema sportsml-specific-curling.xsd
Namespace http://iptc.org/std/nar/2006-10-01/
Properties
attribute form default: unqualified
element form default: qualified

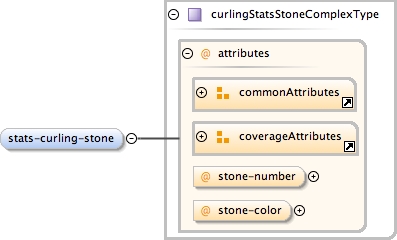

Element curlingTeamStatsComplexType / stats-curling-stone
Namespace http://iptc.org/std/nar/2006-10-01/
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsStoneComplexType_stone-number sportsml-specific-curling_xsd.tmp#curlingStatsStoneComplexType_stone-color sportsml-specific-curling_xsd.tmp#curlingStatsStoneComplexType

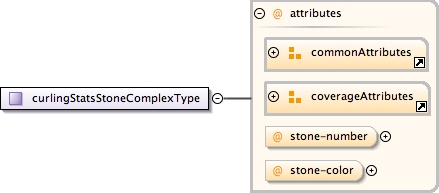

Type curlingStatsStoneComplexType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
stone-color xs:string optional
The color of the stone.
stone-number xs:string optional
The number on the stone.
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:element name="stats-curling-stone" type="curlingStatsStoneComplexType" minOccurs="0" maxOccurs="unbounded"/>
Element curlingTeamStatsComplexType / stats-curling-end
Namespace http://iptc.org/std/nar/2006-10-01/

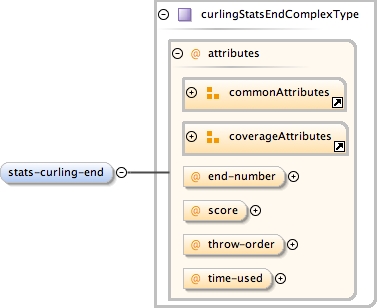

Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_end-number sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_score sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_throw-order sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_time-used sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType

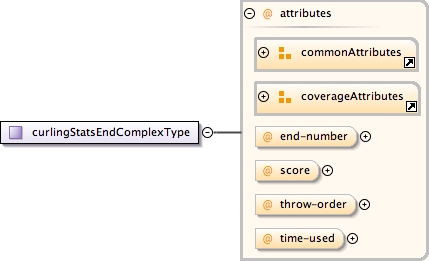

Type curlingStatsEndComplexType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
end-number xs:string optional
Which number the end has.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
score xs:string optional
What was the score for this team this end.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
throw-order restriction of xs:string optional
What order of play, did this team play the first or last stone this end.
time-used xs:string optional
How much time was used by this team this end.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:element name="stats-curling-end" type="curlingStatsEndComplexType" minOccurs="0" maxOccurs="unbounded"/>

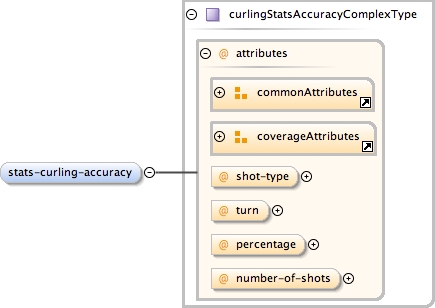

Element curlingTeamStatsComplexType / stats-curling-accuracy
Namespace http://iptc.org/std/nar/2006-10-01/
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_shot-type sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_turn sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_percentage sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_number-of-shots sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType

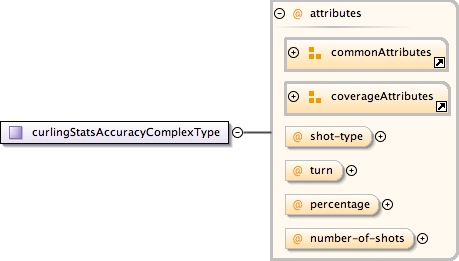

Type curlingStatsAccuracyComplexType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
number-of-shots xs:string optional
Number of shots covered in this stats summary.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
percentage xs:string optional
The calculated percentage of the shots covered in this stats summary.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
shot-type QCodeType optional
If the stats cover a specific shot-type. Use http://cv.iptc.org/newscodes/spcurshot/
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
turn restriction of xs:string optional
If the stats show the values for a specific turn-type inhand or outhand.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:element name="stats-curling-accuracy" type="curlingStatsAccuracyComplexType" minOccurs="0" maxOccurs="unbounded"/>
Element curlingPlayerStatsComplexType / stats-curling-accuracy
Namespace http://iptc.org/std/nar/2006-10-01/
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_shot-type sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_turn sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_percentage sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_number-of-shots sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType
Type curlingStatsAccuracyComplexType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
number-of-shots xs:string optional
Number of shots covered in this stats summary.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
percentage xs:string optional
The calculated percentage of the shots covered in this stats summary.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
shot-type QCodeType optional
If the stats cover a specific shot-type. Use http://cv.iptc.org/newscodes/spcurshot/
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
turn restriction of xs:string optional
If the stats show the values for a specific turn-type inhand or outhand.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:element name="stats-curling-accuracy" type="curlingStatsAccuracyComplexType" minOccurs="0" maxOccurs="unbounded"/>

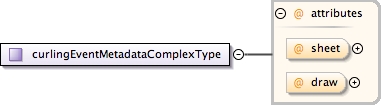

Complex Type curlingEventMetadataComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An element holding sport-specific metadata about a curling game.
Diagram
Diagram sportsml-specific-curling_xsd.tmp#curlingEventMetadataComplexType_sheet sportsml-specific-curling_xsd.tmp#curlingEventMetadataComplexType_draw
Used by
Attributes
QName Type Fixed Default Use Annotation
draw xs:string optional
In curling a game is also called a draw. This is not to be confused with the shot type draw. This attributes can be used to record any curling-specific identification this game/draw has.
sheet xs:string optional
The playing field (ice) for one curling game is called the sheet. In various tournaments the sheets could be identified with numbers, letters or a combination.
Source
<xs:complexType name="curlingEventMetadataComplexType">
  <xs:annotation>
    <xs:documentation>An element holding sport-specific metadata about a curling game.</xs:documentation>
  </xs:annotation>
  <xs:attribute name="sheet" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The playing field (ice) for one curling game is called the sheet. In various tournaments the sheets could be identified with numbers, letters or a combination.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="draw" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>In curling a game is also called a draw. This is not to be confused with the shot type draw. This attributes can be used to record any curling-specific identification this game/draw has.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type curlingTeamStatsComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Statistics summarizing the actions of one team.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingTeamStatsComplexType_hammer sportsml-specific-curling_xsd.tmp#curlingTeamStatsComplexType_stats-curling-stone sportsml-specific-curling_xsd.tmp#curlingTeamStatsComplexType_stats-curling-end sportsml-specific-curling_xsd.tmp#curlingTeamStatsComplexType_stats-curling-accuracy
Used by
Model stats-curling-stone* , stats-curling-end* , stats-curling-accuracy*
Children stats-curling-accuracy, stats-curling-end, stats-curling-stone
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
hammer xs:boolean optional
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="curlingTeamStatsComplexType">
  <xs:annotation>
    <xs:documentation>Statistics summarizing the actions of one team.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="stats-curling-stone" type="curlingStatsStoneComplexType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="stats-curling-end" type="curlingStatsEndComplexType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="stats-curling-accuracy" type="curlingStatsAccuracyComplexType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="hammer" type="xs:boolean"/>
</xs:complexType>
Complex Type curlingStatsStoneComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Description of an individual stone used in a curling game.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsStoneComplexType_stone-number sportsml-specific-curling_xsd.tmp#curlingStatsStoneComplexType_stone-color
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
stone-color xs:string optional
The color of the stone.
stone-number xs:string optional
The number on the stone.
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="curlingStatsStoneComplexType">
  <xs:annotation>
    <xs:documentation>Description of an individual stone used in a curling game.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="stone-number" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The number on the stone.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="stone-color" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The color of the stone.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type curlingStatsEndComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Statistics for one end (round) for one team in a curling game.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_end-number sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_score sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_throw-order sportsml-specific-curling_xsd.tmp#curlingStatsEndComplexType_time-used
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
end-number xs:string optional
Which number the end has.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
score xs:string optional
What was the score for this team this end.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
throw-order restriction of xs:string optional
What order of play, did this team play the first or last stone this end.
time-used xs:string optional
How much time was used by this team this end.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="curlingStatsEndComplexType">
  <xs:annotation>
    <xs:documentation>Statistics for one end (round) for one team in a curling game.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="end-number" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Which number the end has.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="score" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>What was the score for this team this end.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="throw-order" use="optional">
    <xs:annotation>
      <xs:documentation>What order of play, did this team play the first or last stone this end.</xs:documentation>
    </xs:annotation>
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="first">
          <xs:annotation>
            <xs:documentation>The team plays the first stone in this round.</xs:documentation>
          </xs:annotation>
        </xs:enumeration>
        <xs:enumeration value="last">
          <xs:annotation>
            <xs:documentation>This team has the last stone in this round.</xs:documentation>
          </xs:annotation>
        </xs:enumeration>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="time-used" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>How much time was used by this team this end.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type curlingStatsAccuracyComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Holds the summary for shots and percentage for one team or one player and optionally for just one type of shots.
Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_shot-type sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_turn sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_percentage sportsml-specific-curling_xsd.tmp#curlingStatsAccuracyComplexType_number-of-shots
Used by
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
number-of-shots xs:string optional
Number of shots covered in this stats summary.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
percentage xs:string optional
The calculated percentage of the shots covered in this stats summary.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
shot-type QCodeType optional
If the stats cover a specific shot-type. Use http://cv.iptc.org/newscodes/spcurshot/
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
turn restriction of xs:string optional
If the stats show the values for a specific turn-type inhand or outhand.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="curlingStatsAccuracyComplexType">
  <xs:annotation>
    <xs:documentation>Holds the summary for shots and percentage for one team or one player and optionally for just one type of shots.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
  <xs:attribute name="shot-type" use="optional" type="QCodeType">
    <xs:annotation>
      <xs:documentation>If the stats cover a specific shot-type. Use http://cv.iptc.org/newscodes/spcurshot/</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="turn" use="optional">
    <xs:annotation>
      <xs:documentation>If the stats show the values for a specific turn-type inhand or outhand.</xs:documentation>
    </xs:annotation>
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="inturn">
          <xs:annotation>
            <xs:documentation>When the stone is released with a clock-wise turn.</xs:documentation>
          </xs:annotation>
        </xs:enumeration>
        <xs:enumeration value="outturn">
          <xs:annotation>
            <xs:documentation>When the stone is released with a anti-clock-wise turn.</xs:documentation>
          </xs:annotation>
        </xs:enumeration>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="percentage" use="optional">
    <xs:annotation>
      <xs:documentation>The calculated percentage of the shots covered in this stats summary.</xs:documentation>
    </xs:annotation>
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:annotation>
          <xs:documentation>For individual shots the result is scored as 0,25,50,75,100,125 or 150 is used. But since the type is used for calculated averages for several shots it must be open to any value. 0 is a complete miss, 25 a bad shot, 50 an average, 75 a good shot and 100 for a perfect shot. 125 is reserved to exceptional shots and 150 for very exceptional shots that are also changing the outcome of the game.</xs:documentation>
        </xs:annotation>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="number-of-shots" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>Number of shots covered in this stats summary.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type curlingPlayerMetadataComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Holds metadata specific to a curling player.

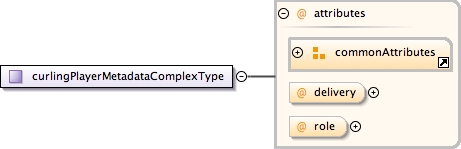

Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml-specific-curling_xsd.tmp#curlingPlayerMetadataComplexType_delivery sportsml-specific-curling_xsd.tmp#curlingPlayerMetadataComplexType_role
Used by
Attributes
QName Type Fixed Default Use Annotation
class xs:string optional
An open placeholder for categorization.
delivery xs:string optional
If the player is playing righthanded or lefthanded.
id xs:ID optional
An XML-specific identifier for the element.
role xs:string optional
If the player has a named role in the team. For example skip or vice skip.
style xs:string optional
An open placeholder for reference by an external stylesheet.
Source
<xs:complexType name="curlingPlayerMetadataComplexType">
  <xs:annotation>
    <xs:documentation>Holds metadata specific to a curling player.</xs:documentation>
  </xs:annotation>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attribute name="delivery" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>If the player is playing righthanded or lefthanded.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="role" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>If the player has a named role in the team. For example skip or vice skip.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>
Complex Type curlingPlayerStatsComplexType
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Holds curling-specific stats for certain player.

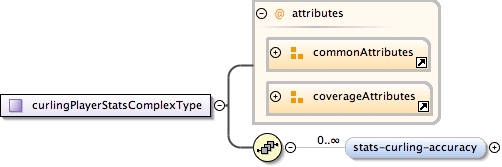

Diagram
Diagram sportsml_xsd.tmp#commonAttributes sportsml_xsd.tmp#coverageAttributes sportsml-specific-curling_xsd.tmp#curlingPlayerStatsComplexType_stats-curling-accuracy
Used by
Model stats-curling-accuracy*
Children stats-curling-accuracy
Attributes
QName Type Fixed Default Use Annotation
alignment-scope restriction of xs:string optional
Indicates that the included statistics apply only to events played either at home or away.
class xs:string optional
An open placeholder for categorization.
competition QCodeType optional
The key of the league or competition for which the player or team generated the stats.
distance xs:string optional
Measure of distance for the generated stat.
distance-maximum xs:string optional
Maximum distance for the generated stat.
distance-minimum xs:string optional
Minimum distance for the generated stat.
duration-scope QCodeType optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime. SportsML vocab uri: http://cv.iptc.org/newscodes/spdurationscope/
end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the event for which the stats are relevant.
event-span xs:nonNegativeInteger optional
Qualifier of "most-recent-events" value for temporal-unit attribute. Specify the number of events eg. 10 for last 10 games.
id xs:ID optional
An XML-specific identifier for the element.
location-key QCodeType optional
The key of the site,venue or location where the stats were generated.
measurement-units xs:string optional
The type of unit used to measure distance, speed, etc. Could be mph, kph, metres, yards, etc.
opponent-type QCodeType optional
Whether the opponent was a player, team, etc.
opponent-value QCodeType optional
The key of the player, team, division, conference, league or other unit which provide the opposition relevant to the stat.
period-end-date-time TruncatedDateTimeType optional
The ending date, with optional time, of the period for which the stats are relevant.
period-start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the period for which the stats are relevant.
period-type QCodeType optional
For certain types of periods: overtime, declared (cricket), etc.
period-value xs:string optional
Used for tracking stats and events by period.
position xs:string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope QCodeType optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scope-value QCodeType optional
A generic scope indicator. Use only if none of the other coverage attributes are suitable.
scoping-label xs:string optional
A textual description for the scope.
situation QCodeType optional
Final or current score of the team or player.
start-date-time TruncatedDateTimeType optional
The starting date, with optional time, of the event for which the stats are relevant.
stats-coverage QCodeType optional
A relative indication of how many statistics are included in the item. SportsML vocab uri: http://cv.iptc.org/newscodes/spstatscoverage/
style xs:string optional
An open placeholder for reference by an external stylesheet.
surface-type QCodeType optional
The type of surface (eg. clay, artificial grass, etc.) upon which the stats were generated.
team QCodeType optional
The key of the team for which the player or team generated the stats.
team-coverage restriction of xs:string optional
Indicates whether the item contains information about one team, or
many teams.
temporal-unit-type QCodeType optional
The unit of performance to which the stats apply eg. single-event, season, career.
temporal-unit-value QCodeType optional
The key of performance unit to which the stats apply.
unit-type QCodeType optional
The type, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
unit-value QCodeType optional
The key, other than team or league/competition, of the competitive unit for which the player or team generated the stats.
venue-type QCodeType optional
The type of event (eg. indoor, outdoor, etc.) in which the stats were generated.
weather-type QCodeType optional
A code for the weather situation in which the stats were generated. SportsML weather codes recommended.
Source
<xs:complexType name="curlingPlayerStatsComplexType">
  <xs:annotation>
    <xs:documentation>Holds curling-specific stats for certain player.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="stats-curling-accuracy" type="curlingStatsAccuracyComplexType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attributeGroup ref="commonAttributes"/>
  <xs:attributeGroup ref="coverageAttributes"/>
</xs:complexType>
Attribute curlingEventMetadataComplexType / @sheet
Namespace No namespace
Annotations
The playing field (ice) for one curling game is called the sheet. In various tournaments the sheets could be identified with numbers, letters or a combination.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="sheet" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>The playing field (ice) for one curling game is called the sheet. In various tournaments the sheets could be identified with numbers, letters or a combination.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingEventMetadataComplexType / @draw
Namespace No namespace
Annotations
In curling a game is also called a draw. This is not to be confused with the shot type draw. This attributes can be used to record any curling-specific identification this game/draw has.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="draw" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>In curling a game is also called a draw. This is not to be confused with the shot type draw. This attributes can be used to record any curling-specific identification this game/draw has.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsStoneComplexType / @stone-number
Namespace No namespace
Annotations
The number on the stone.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="stone-number" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>The number on the stone.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsStoneComplexType / @stone-color
Namespace No namespace
Annotations
The color of the stone.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="stone-color" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>The color of the stone.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsEndComplexType / @end-number
Namespace No namespace
Annotations
Which number the end has.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="end-number" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Which number the end has.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsEndComplexType / @score
Namespace No namespace
Annotations
What was the score for this team this end.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="score" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>What was the score for this team this end.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsEndComplexType / @throw-order
Namespace No namespace
Annotations
What order of play, did this team play the first or last stone this end.
Type restriction of xs:string
Properties
use: optional
Facets
enumeration first
The team plays the first stone in this round.
enumeration last
This team has the last stone in this round.
Used by
Source
<xs:attribute name="throw-order" use="optional">
  <xs:annotation>
    <xs:documentation>What order of play, did this team play the first or last stone this end.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="first">
        <xs:annotation>
          <xs:documentation>The team plays the first stone in this round.</xs:documentation>
        </xs:annotation>
      </xs:enumeration>
      <xs:enumeration value="last">
        <xs:annotation>
          <xs:documentation>This team has the last stone in this round.</xs:documentation>
        </xs:annotation>
      </xs:enumeration>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute curlingStatsEndComplexType / @time-used
Namespace No namespace
Annotations
How much time was used by this team this end.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="time-used" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>How much time was used by this team this end.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsAccuracyComplexType / @shot-type
Namespace No namespace
Annotations
If the stats cover a specific shot-type. Use http://cv.iptc.org/newscodes/spcurshot/
Type QCodeType
Properties
use: optional
Facets
pattern [^\s:]+:[^\s]+
Used by
Source
<xs:attribute name="shot-type" use="optional" type="QCodeType">
  <xs:annotation>
    <xs:documentation>If the stats cover a specific shot-type. Use http://cv.iptc.org/newscodes/spcurshot/</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingStatsAccuracyComplexType / @turn
Namespace No namespace
Annotations
If the stats show the values for a specific turn-type inhand or outhand.
Type restriction of xs:string
Properties
use: optional
Facets
enumeration inturn
When the stone is released with a clock-wise turn.
enumeration outturn
When the stone is released with a anti-clock-wise turn.
Used by
Source
<xs:attribute name="turn" use="optional">
  <xs:annotation>
    <xs:documentation>If the stats show the values for a specific turn-type inhand or outhand.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="inturn">
        <xs:annotation>
          <xs:documentation>When the stone is released with a clock-wise turn.</xs:documentation>
        </xs:annotation>
      </xs:enumeration>
      <xs:enumeration value="outturn">
        <xs:annotation>
          <xs:documentation>When the stone is released with a anti-clock-wise turn.</xs:documentation>
        </xs:annotation>
      </xs:enumeration>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute curlingStatsAccuracyComplexType / @percentage
Namespace No namespace
Annotations
The calculated percentage of the shots covered in this stats summary.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="percentage" use="optional">
  <xs:annotation>
    <xs:documentation>The calculated percentage of the shots covered in this stats summary.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:annotation>
        <xs:documentation>For individual shots the result is scored as 0,25,50,75,100,125 or 150 is used. But since the type is used for calculated averages for several shots it must be open to any value. 0 is a complete miss, 25 a bad shot, 50 an average, 75 a good shot and 100 for a perfect shot. 125 is reserved to exceptional shots and 150 for very exceptional shots that are also changing the outcome of the game.</xs:documentation>
      </xs:annotation>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>
Attribute curlingStatsAccuracyComplexType / @number-of-shots
Namespace No namespace
Annotations
Number of shots covered in this stats summary.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="number-of-shots" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>Number of shots covered in this stats summary.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingTeamStatsComplexType / @hammer
Namespace No namespace
Type xs:boolean
Properties
content: simple
Used by
Source
<xs:attribute name="hammer" type="xs:boolean"/>
Attribute curlingPlayerMetadataComplexType / @delivery
Namespace No namespace
Annotations
If the player is playing righthanded or lefthanded.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="delivery" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>If the player is playing righthanded or lefthanded.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute curlingPlayerMetadataComplexType / @role
Namespace No namespace
Annotations
If the player has a named role in the team. For example skip or vice skip.
Type xs:string
Properties
use: optional
Used by
Source
<xs:attribute name="role" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>If the player has a named role in the team. For example skip or vice skip.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateCurling / @stone-idref
Namespace No namespace
Annotations
A reference to an id of the stone used.
Type xs:string
Properties
use: optional
Used by
Attribute Group eventStateCurling
Source
<xs:attribute name="stone-idref" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>A reference to an id of the stone used.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute eventStateCurling / @end-number
Namespace No namespace
Annotations
The number of the end. Rounds of normally 8+8 stones are called ends in curling.
Type xs:string
Properties
use: optional
Used by
Attribute Group eventStateCurling
Source
<xs:attribute name="end-number" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>The number of the end. Rounds of normally 8+8 stones are called ends in curling.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute Group eventStateCurling
Namespace http://iptc.org/std/nar/2006-10-01/
Diagram
Diagram sportsml-specific-curling_xsd.tmp#eventStateCurling_stone-idref sportsml-specific-curling_xsd.tmp#eventStateCurling_end-number
Attributes
QName Type Fixed Default Use Annotation
end-number xs:string optional
The number of the end. Rounds of normally 8+8 stones are called ends in curling.
stone-idref xs:string optional
A reference to an id of the stone used.
Source
<xs:attributeGroup name="eventStateCurling">
  <xs:attribute name="stone-idref" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>A reference to an id of the stone used.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="end-number" type="xs:string" use="optional">
    <xs:annotation>
      <xs:documentation>The number of the end. Rounds of normally 8+8 stones are called ends in curling.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:attributeGroup>
